Thermex ID 30 V Shadow Smart Boiler

30 liter flat Smart boiler, black

Thermex ID 30 V Smart Shadow storage water heater, BIO-glasslined

The Thermex ID Smart series can be perfectly integrated in any conceivable place due to its flat design. Due to good insulation and the new SMART function, this water heater has an excellent energy efficiency, resulting in an Energy Label B.

Using the smart "SMART" mode, the water heater monitors the use of hot water. In this way, the water heater prepares itself for the next cycle of water use. (7 days in a cycle). At times when you do not need hot water, the water is kept at a minimum temperature. In this way you can still save energy with maximum comfort! Moreover, the water heater is easy to operate thanks to the user-friendly display. It is also equipped with a self-diagnosis and frost protection.

The tanks are produced according to the BIO-glasslined principle. These are enamelled steel tanks that, thanks to this unique and patented coating, offer the inner tank with the highest possible protection without burdening the environment. If the power fails, the device will remember its last settings.

The ID series is the luxury variant of the IF Pro series and only available in black.

Included in the package:

* Boiler including connection cable

* 3-fold safety valve * Instruction manual

* 1 set of wall anchors

Technical data:

Brand: Thermex

Type: ID 30V SMART Shadow

- BIO-glasslined tanks, 2 anodes.

- Net content: 25 liters

- Installation: vertical mounting, branch pipes downwards

- Water pressure: minimum 0.05 MPa and maximum 0.6 MPa Working pressure: maximum 0.6 MPa

- Connection value: 2000 Watt 230 Volt 10 Amp.

- Dimensions: 263 x 453 x 587 mm (d x w x h)

- Empty weight: 13.5 Kg.

- Warm-up time of the incoming temperature with 45 degrees: 39 minutes.

- Maximum temperature: 65 degrees.

- Energy label: B

- Warranty: 2 years, 5 years on the tanks.

- Content package: boiler, manual, wall anchors and an inlet combination: 3-way safety valve (this is a drain valve, non-return valve and pressure relief valve in 1).

Brand: Thermex
Energy class: Product sheet
£ 170,- incl. VAT

Sold out, you can still order this item, we will ship it asap when available.

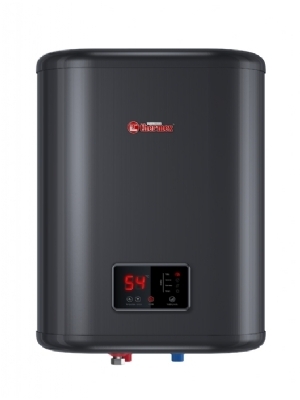

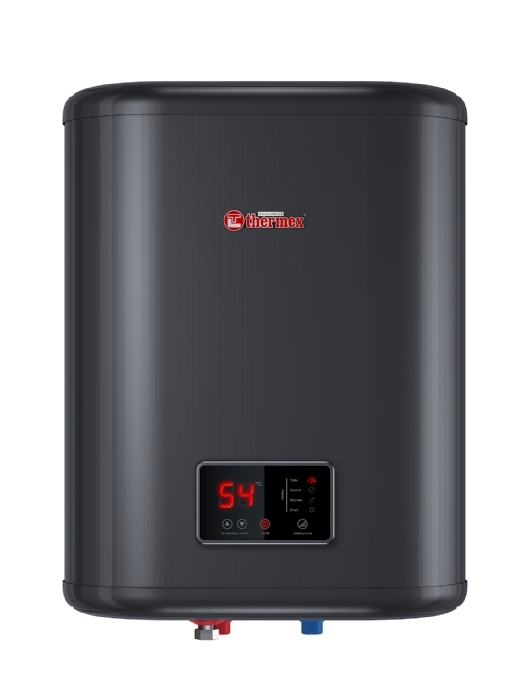

  • Thermex ID 30 Smart V front

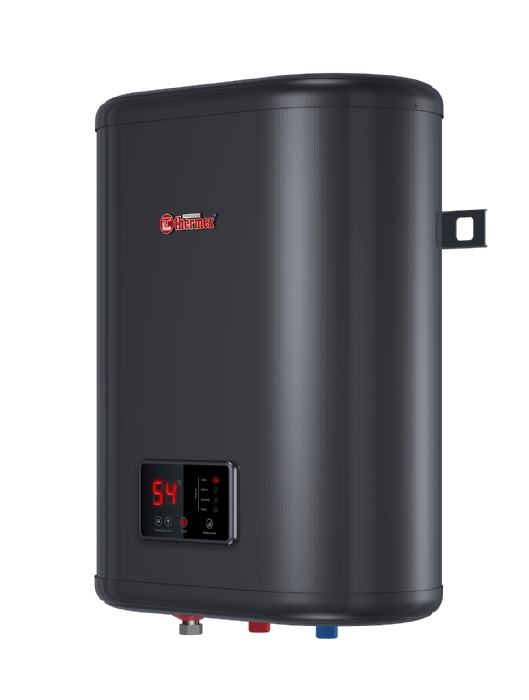

  • Thermex ID 30 Smart V side

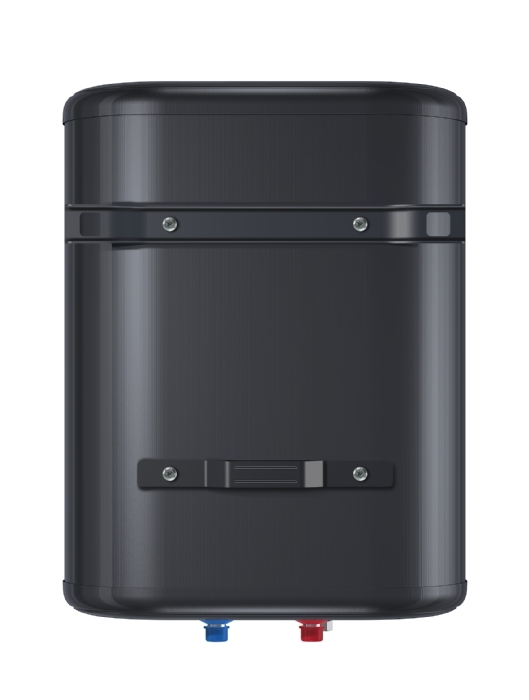

  • Thermex ID 30 Smart V back
  • Thermex ID serie display 1
  • Thermex ID serie display 2
  • Thermex ID serie display 3
  • Thermex ID serie bottom
  • ErP ID30V Shadow
  • Load profile ID Shadow


  • Installation example of a Thermex ID Shadow
