Thermex IF 30 Flat Smart

Description:

The Thermex IF 30 SMART boiler combines advanced features, energy efficiency, and flexible installation options. Here are the specifications and features of this boiler:

Design and Installation

• Installation: Suitable for both vertical and horizontal mounting, offering flexibility for integration in various locations.
• Design: The flat design allows the boiler to integrate perfectly in any conceivable space.

Energy Efficiency

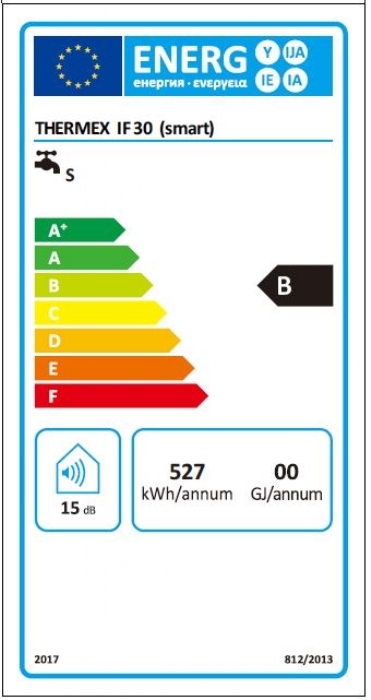

• Energy Label: B, thanks to excellent insulation and the smart "SMART" mode that maximizes energy savings by maintaining water at a minimum temperature when hot water is not needed.
• SMART Function: Monitors hot water usage and prepares for the next cycle of water usage, providing comfort while saving energy.

Ease of Use and Safety

• Display: Equipped with a user-friendly display with self-diagnosis and frost protection for added convenience and safety.
• Power Loss Safety: Automatically switches to standby mode during power outages and requires manual reactivation after power is restored.

Construction and Materials

• Tanks: Enameled steel tanks with BIO-glasslined coating provide maximum protection to the inner tank without environmental impact.
• Safety Features: Includes a 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one) for optimal safety.

Technical Specifications

• Brand: Thermex
• Type: IF 30 SMART
• Net Capacity: 25 liters
• Installation: Vertical mounting (dimensions: 587 x 453 x 263 mm) and horizontal mounting (dimensions: 453 x 587 x 263 mm), with downward and leftward branch connections respectively.
• Water Pressure: Minimum 0.05 MPa, Maximum 0.7 MPa
• Operating Pressure: Maximum 0.8 MPa
• Power Rating: 2000 Watts, 230 Volts, 10 Amps
• Water Connection: ½“ inch
• Empty Weight: 13.5 kg
• Heating Time at Incoming Temperature of 45 degrees: 39 minutes
• Maximum Temperature: 65 degrees Celsius
• Warranty: 2 years full warranty, 5 years on the tanks

Included in the Package

• Boiler including connection cable
• Manual
• Set of wall anchors
• Inlet combination: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one)

The Thermex IF 30 SMART boiler offers a compact solution with advanced features and high-quality materials, ideal for various household applications where efficiency and ease of use are important.
