Description:

The Thermex Flat Boiler IF 30 V Pro is designed for compact installation and provides efficient and rapid hot water supply. Here are the detailed specifications and features of this model:

Design and Installation

Installation: Specifically designed for vertical mounting, ideal for various spaces due to its compact design.
Compact Design: Equipped with the "double-tank" principle, ensuring a compact built-in depth and efficient space utilization.

Heating Options

Heating Elements: Two heating elements for flexibility:
- Standard mode of 1.3 kW for regular heating needs.
- "Power" mode up to 2 kW for rapid heating by adding an additional 0.7 kW heating element.
Energy Efficiency: Energy label C, offering a good balance between performance and energy consumption.

Ease of Use

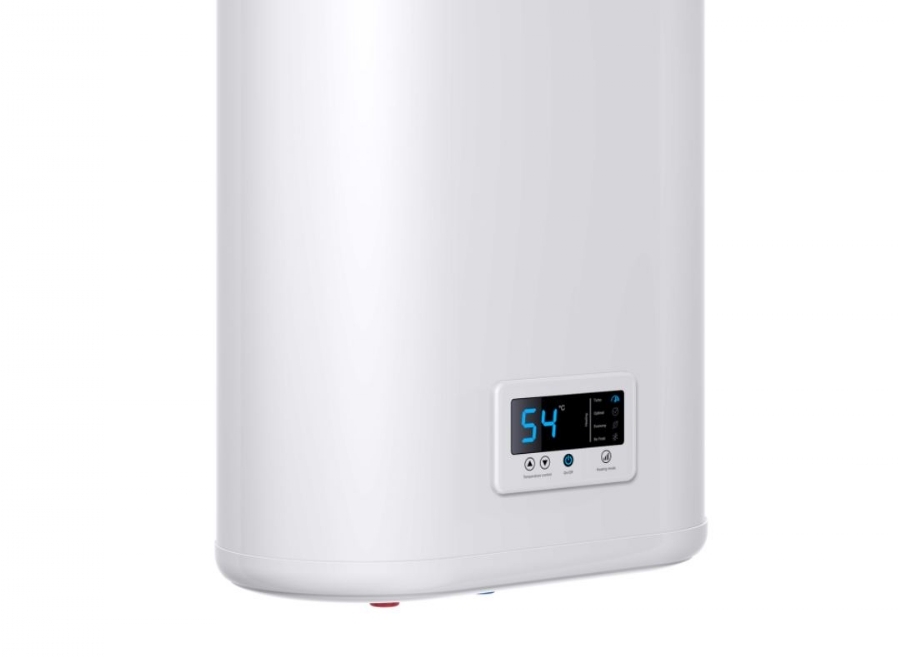

Operation: Simple control via 4 push buttons on the LCD display, where you can read the set and current water temperature.
Safety: CE-certified for safe use throughout Europe. Comes with an inlet combination that also functions as a pressure relief valve and check valve.
Power Outage Protection: Automatically switches to standby mode during a power outage. After power is restored, the device must be manually turned on for safety.

Construction and Materials

Tanks: Made of high-quality stainless steel and welded according to the G5 principle for durability and a long lifespan.
Warranty: 2 years full warranty on the device and 7 years warranty on the boiler, demonstrating the high quality and reliability of the boiler.

Technical Specifications

Brand: Thermex
Type: IF 30 V Pro
Net Capacity: 26 liters
Dimensions: 263 x 453 x 587 mm (depth x width x height)
Weight: 9.5 kg
Power Rating: 2000 Watts / 230 Volts
Water Connection: ½“ inch
Heating Time: 1 hour
Maximum Temperature: 65 degrees Celsius
Protection Class: IPX4 (protected against splashing water)

Included in the Package

Boiler
User manual
Heavy-duty wall anchors for wall mounting
Check valve

The Thermex Flat Boiler IF 30 V Pro offers a combination of advanced features, ease of use, and safety, making it an excellent choice for households in need of efficient and reliable hot water supply in a compact design.
