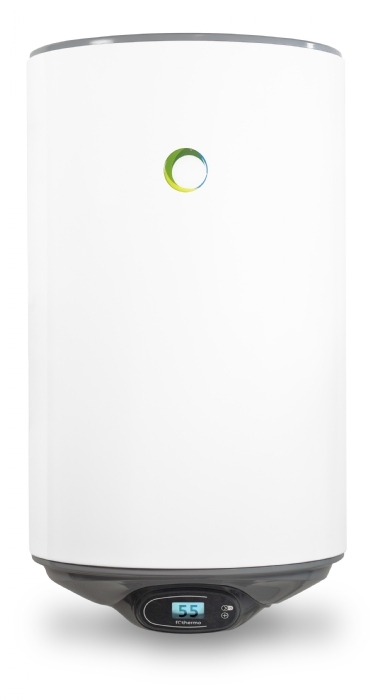

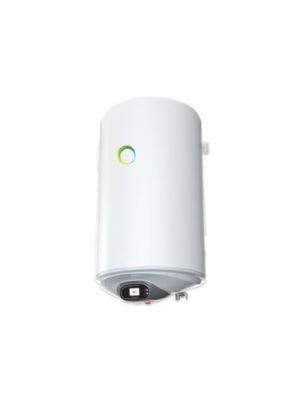

The Fothermo PV water heater 80 litres is an electric water heater (A+) that can be connected directly to your solar panels.
This model is ideal to be placed in your home, camper, caravan, chalet, tiny house, etc.
The ideal off-grid water heater that can be heated 100% by your solar panels.
(The solar panels are not included and are therefore not included.)

Optional power supply
You want to be able to use your water heater even without sunlight, for which we have an optional power supply.
See the options below:


62W - 140W - 240W
You can order these separately on our site.
Heating time water heater with direct connection to solar panel:
Solar panel
|
Water heater 10 litres
|
Water heater 30 litres
|
Water heater 80 litres
|
~ 200W
|
~ 3 hours
|
~ 9.5 hours
|
~ 24.5 hours
|
~ 400W
|
~ 1.5 hours
|
~ 4.5 hours
|
~ 12.5 hours
|
~ 550W
|
~ 1.25 hours
|
~ 3.75 hours
|
~ 9 hours
|
~ 550W …1500W
|
~ 1.25 hours
|
~ 3.75 hours
|
~ 9 hours
|
Characteristics:
- 80 litres photovoltaic water heater
- Hot water up to 65 ° C
- No connection to the electricity grid required
- Integrated solar controller with MPPT charging technology = up to 30% additional yield

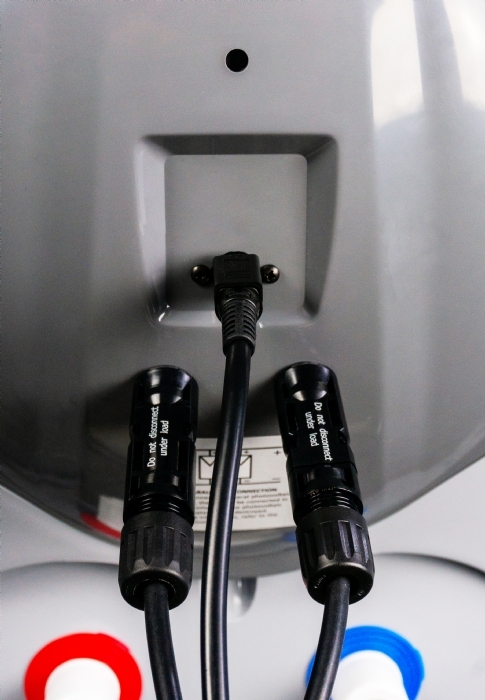

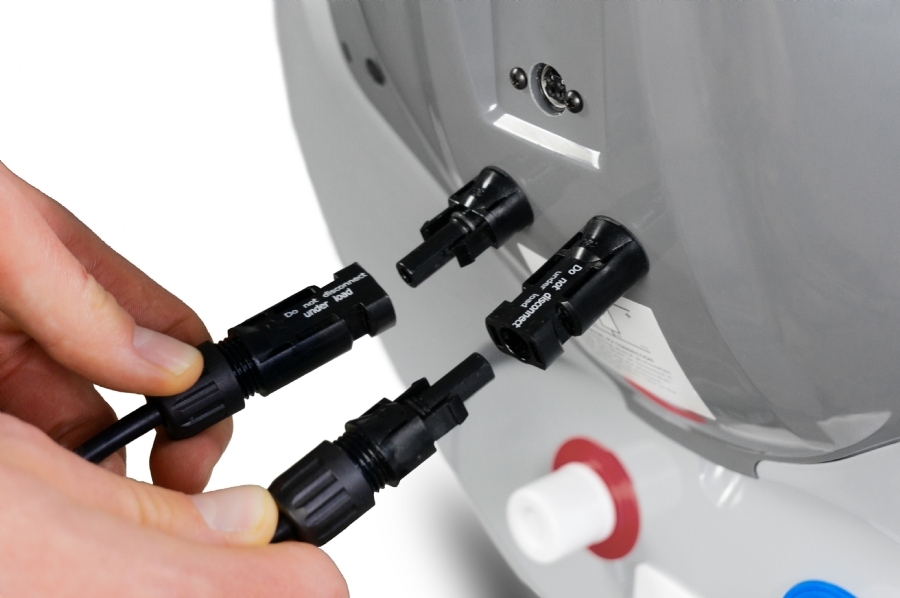

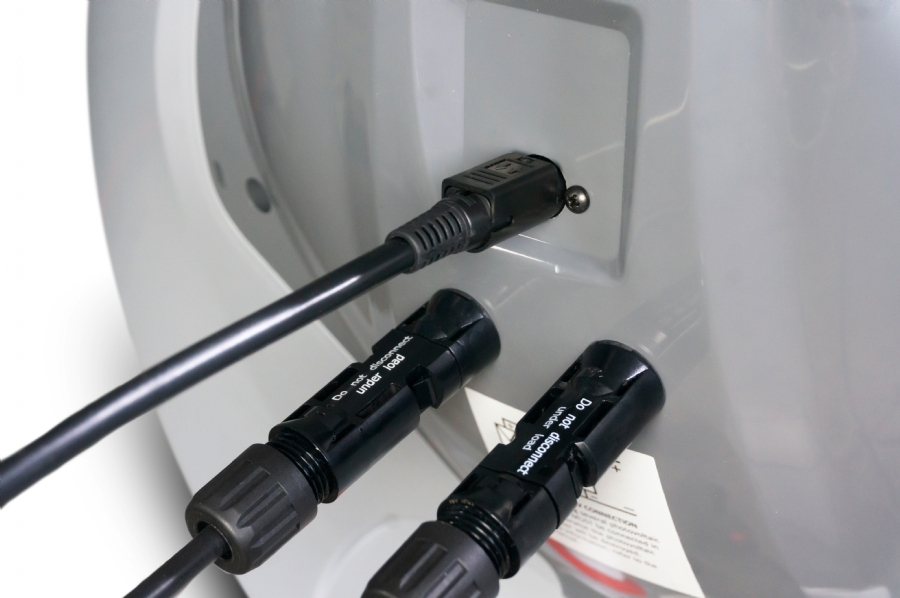

- Direct connection MC4 for solar panels from 100 to 1000 watts

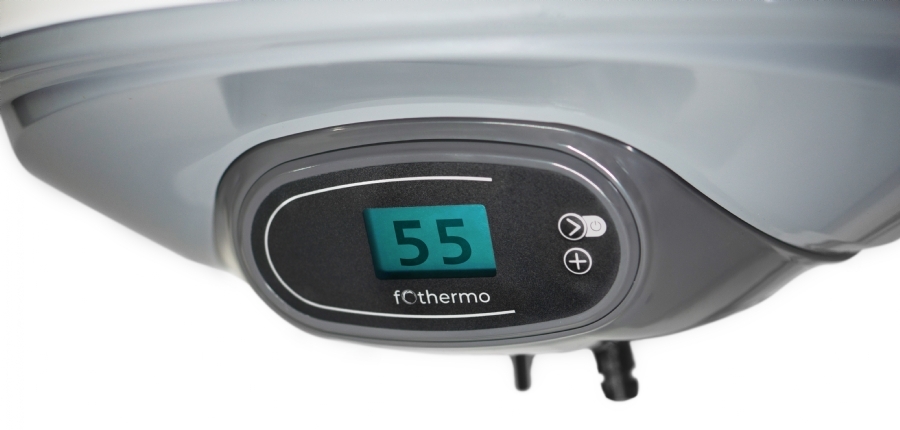

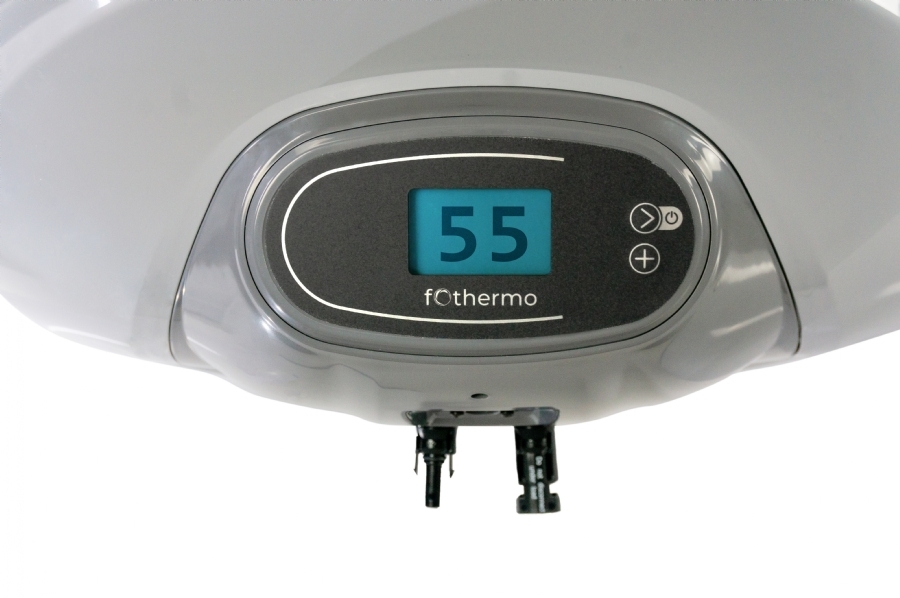

- Digital temperature and energy saving display
- High manufacturing quality: insulated and enamelled tank
- Safe operation with low voltage below 50 volts
- Inlet combination is included in the delivery
Specifications:
Type: PVB-80
Display: Digital
Capacity: 80 litres
Anode : Yes
Power supply: Optional
Dimensions: 480 x 470 x 900 mm. ( w x d x h )
Mounting method: Vertical

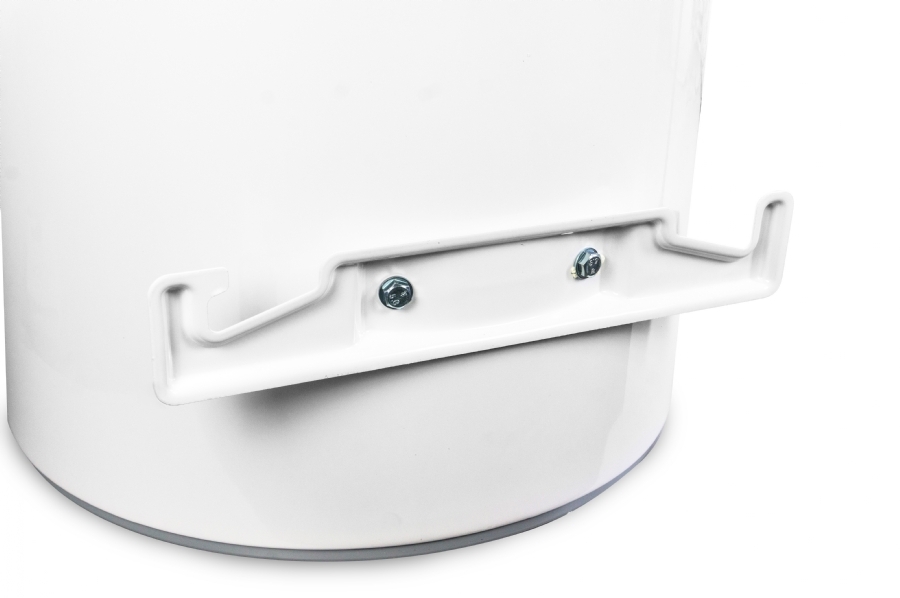

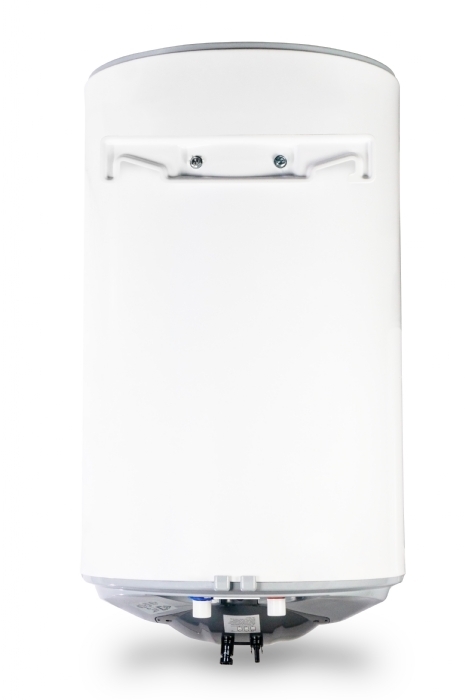

Mounting bracket is attached to the water heater (mounting material not included)
Energy class: (A+)
Power consumption: 504 kWh per year
Max. pressure: 8 Bar
Wattage: 550 watt

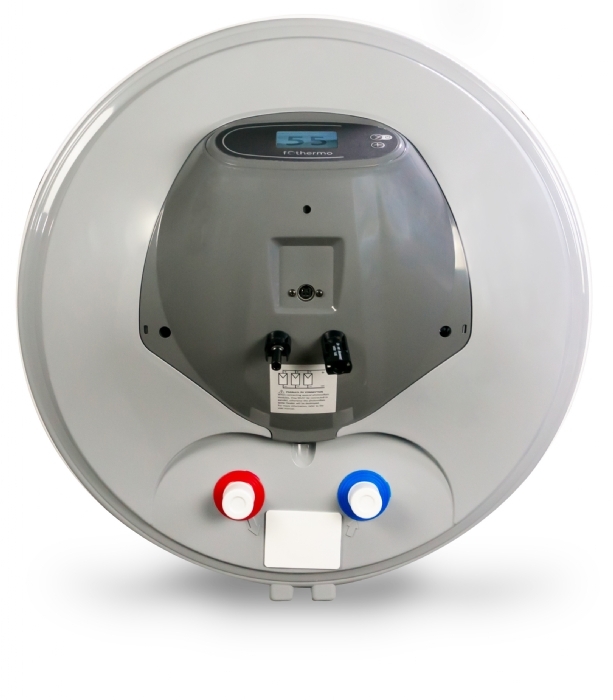

Water connection: ½ " inch
Weight: 25 Kg.
Included in delivery:
- Water heater
- Drilling template (printed on the packaging) for easy installation
- 3-way safety valve, also called inlet combination : this is a drain valve, non-return valve and pressure relief valve in one
- Instruction manual
Wall anchors are not included.
£ 490,- incl. VAT
Stock:
