Description:

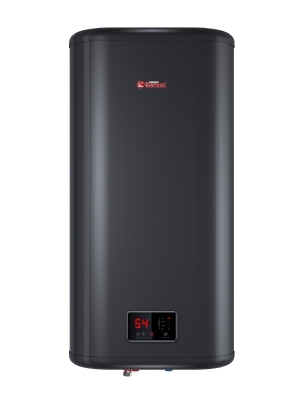

The Thermex ID 80 V SMART boiler offers advanced features and energy efficiency, tailored for household use. Here are the detailed specifications and features:

Design and Integration

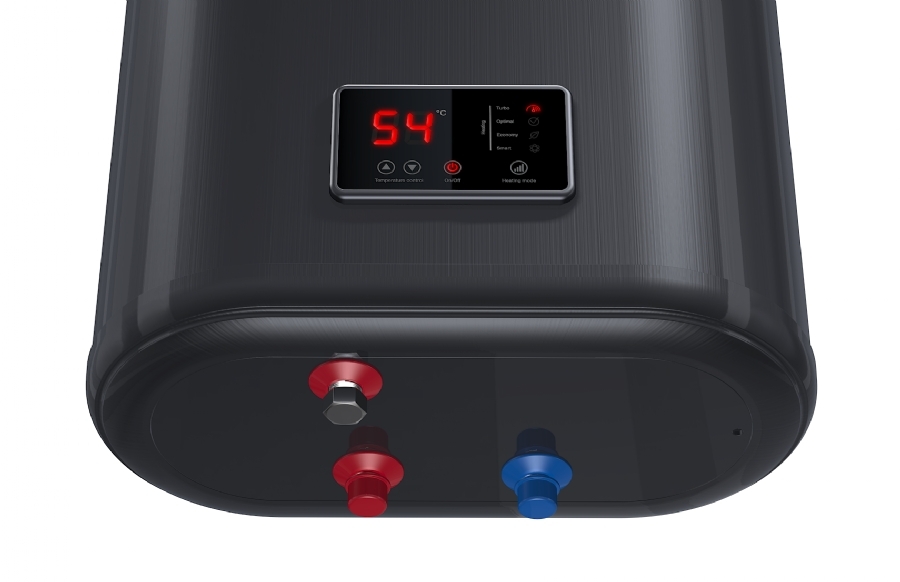

Installation: Vertical mounting with downward connections, suitable for various installation environments.
Design: The slim design allows the boiler to be integrated into almost any location, making it versatile in different household settings.

Energy Efficiency

Energy Label: B, achieved through excellent insulation and the SMART mode that maximizes energy savings by maintaining water at a minimum temperature when hot water demand is low.
SMART Function: The boiler monitors hot water usage and prepares for the next cycle, enhancing comfort and energy efficiency.

Ease of Use and Safety

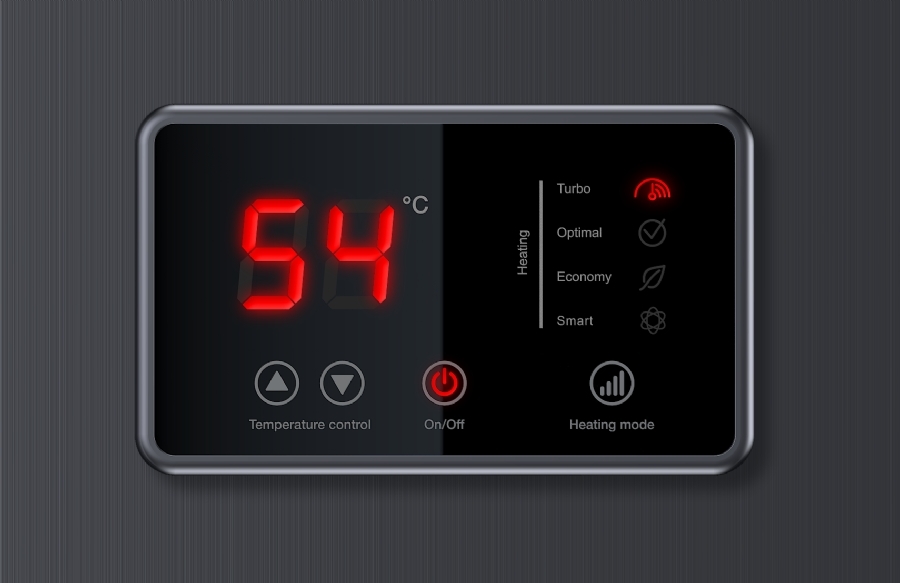

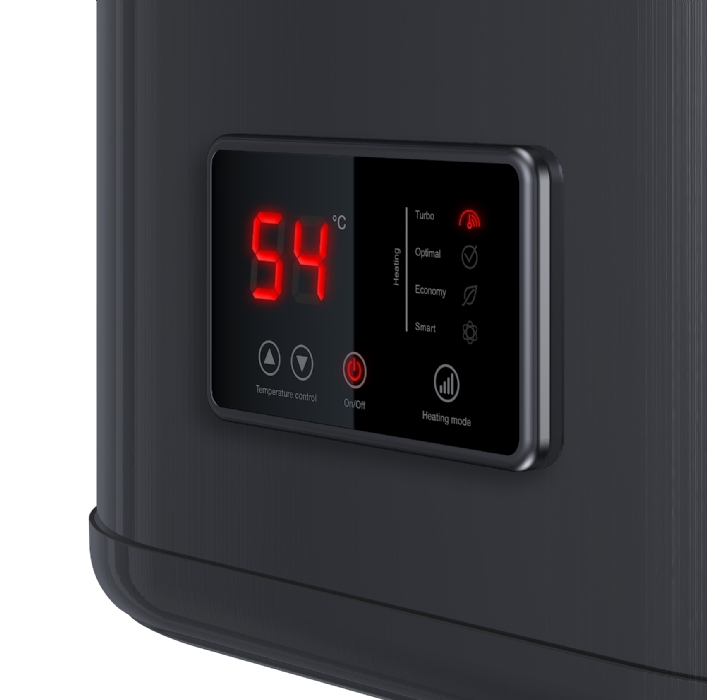

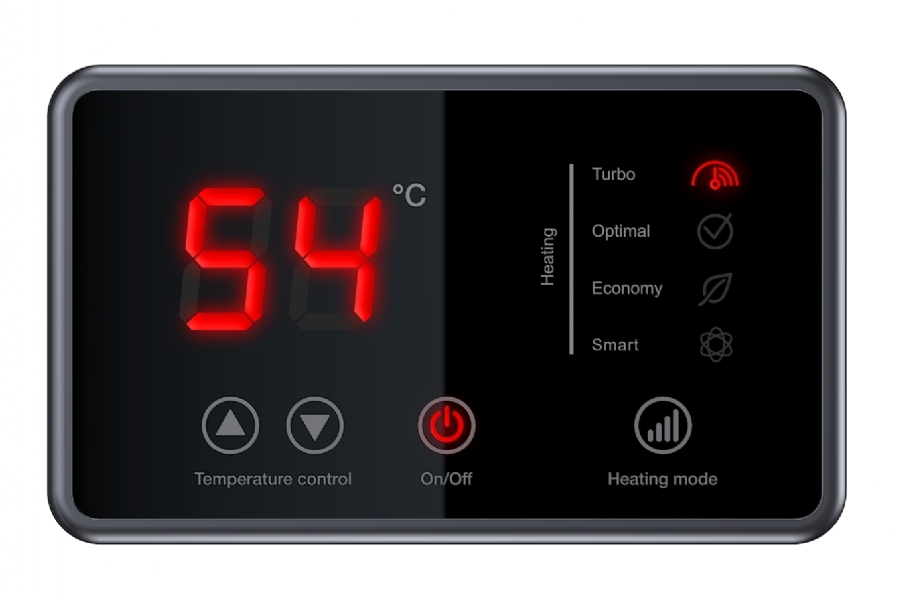

Display: User-friendly display with self-diagnosis function and frost protection.
Power Loss Memory: Retains last settings, ensuring convenience and reliability.

Materials and Construction

Tanks: Constructed from high-quality stainless steel with 2 anodes for durability and corrosion protection following the G5 principle.
Safety Valve: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve included) for maximum safety.

Technical Specifications

Net Capacity: 68 liters
Power Rating: 2000 Watts, 230 Volts, 10 Amps
Dimensions: 293 x 511 x 1018 mm (depth x width x height)
Empty Weight: 17 kg
Heating Time: 2 hours and 10 minutes
Maximum Temperature: 65 degrees Celsius
Water Pressure: Minimum 0.05 MPa, Maximum 0.6 MPa
Operating Pressure: Maximum 0.6 MPa

Included in the Package

Boiler with connection cable
Manual
Set of wall anchors
Inlet combination: 3-in-1 safety valve (drain valve, check valve, and pressure relief valve in one)

Warranty

2 years full warranty, 5 years on the tanks for added peace of mind and reliability.

The Thermex ID 80 V SMART boiler combines high-quality materials, advanced technologies, and user-friendly features to provide efficient and reliable hot water supply, suitable for various household applications.
