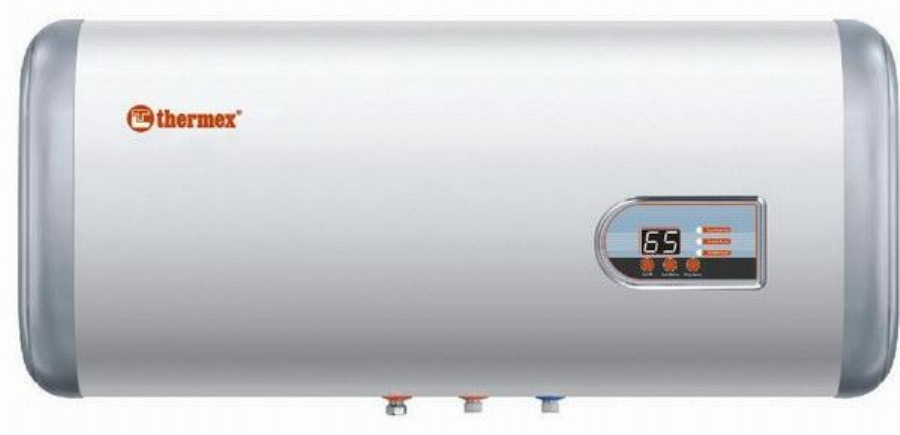

Thermex IF 80 H Flat horizontal

Description:

The Thermex Flat Boiler IF 80 H is a powerful boiler featuring a large capacity and advanced features for efficient heating and ease of use. Here are the key features and specifications of this model:

Design and Installation

• Mounting: Horizontal installation, suitable for spaces where vertical room is limited.
• Compact design: Equipped with the dual-tank principle for a compact built-in depth.

Heating Options and Efficiency

• Heating Elements: Two heating elements with variable capacity:
  • Standard mode of 1.3 kW for regular heating needs.
  • "Power" mode up to 2 kW by activating an additional 0.7 kW heating element for faster heating.
• Heating Time: Requires 2 hours and 10 minutes to heat the full 80-liter capacity.
• Maximum Temperature: Adjustable up to 65 degrees Celsius for comfortable use.

Ease of Use and Safety

• Operation: Easy operation via 3 buttons on the LCD display for setting water temperature and monitoring system information.
• Safety: CE-certified for safe use throughout Europe. Includes an inlet combination acting as a pressure relief valve and check valve, along with an integrated residual-current device (RCD) for added safety.
• Power Failure: Automatically switches off during power outages and requires manual reactivation upon power restoration.

Construction and Materials

• Construction: Sturdy design weighing 20 kg and dimensions of 285 x 493 x 1025 mm (depth x height x width).
• Water Connection: Suitable for standard ½ inch connections.

Technical Specifications

• Brand: Thermex
• Type: IF 80 H
• Capacity: 80 liters
• Power Rating: 2000 Watts / 230 Volts

Included in the Package

• Boiler
• User manual
• Extra heavy-duty wall anchors for secure installation
• Check valve
• Integrated residual-current device (RCD) on the power cord

The Thermex Flat Boiler IF 80 H combines large capacity, efficient heating options, and ease of use. With its compact design and advanced safety features, this model is ideal for households requiring a reliable and powerful boiler for daily use.
