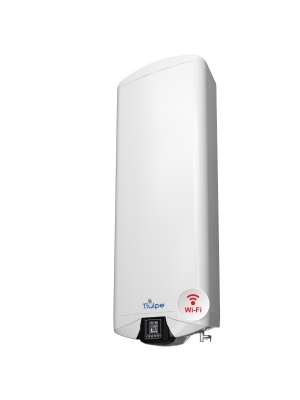

TTulpe SmartMaster 100 flat electric water heater with smart control and Wi-Fi

horizontal or vertical,3300 Watt (2.1 kW + 1.2 kW) smart boiler with very extensive functions, 100 litre


The TTulpe SmartMaster 100 offers high-quality hot water supply with advanced features and exceptional quality, ideal for households with hard water. With a net capacity of 80 liters and a smart design, this boiler can be mounted both horizontally and vertically, making it versatile for various installation needs.

Key Features:

  • Smart Control: Easy operation via the free MyELDOM app on your smartphone for maximum comfort and energy savings.
  • Programmable Options: Manual settings for heating modes, timers, and energy-saving programs such as eco-mode and anti-freeze mode.
  • Advanced Safety Features: Anti-legionella mode and corrosion protection thanks to 4-fold extra large anodes.
  • Flat Design: For a low installation depth and versatile mounting options.
  • Long Lifespan: Special ceramic coating on tanks and heating elements for durability.
  • Memory Function: Remembers the last setting after a power interruption for user convenience.

Technical Specifications:

  • Brand: TTulpe
  • Type: SmartMaster 100
  • Net Capacity: 80 liters
  • Placement: Vertical mounting (water connections downwards) or horizontal mounting (water connections to the left)
  • Water Pressure: Minimum 0.1 MPa and maximum 0.7 MPa
  • Operating Pressure: Maximum 0.7 MPa
  • Power Rating: 3300 Watts / 230 Volts / 15 Amps
  • Protection: IP24
  • Dimensions (Vertical): 1228 x 511 x 279 mm (H x W x D)
  • Dimensions (Horizontal): 511 x 1228 x 279 mm (H x W x D)
  • Distance Water Connections to Wall: 100 mm
  • Distance between Water Connections: 337 mm
  • Thread Connections: ½ inch
  • Cable with Plug Length: 120 cm
  • Empty Weight: 34.5 kg
  • Heating Time (45°C): 60 minutes
  • Full Heating Time: 126 minutes
  • Maximum Temperature: 75 degrees Celsius

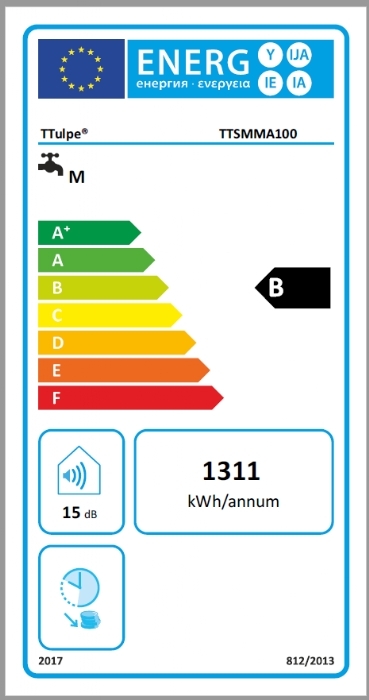

  • Energy Label: B

Included in Delivery:

  • Boiler including connection cable and plug
  • 3-way safety valve (inlet combination)
  • Manual

The TTulpe SmartMaster 100 provides reliable and efficient hot water supply with advanced features for maximum comfort and ease of use. Note: Due to the size and weight, pallet transport is used for delivery. Please ensure that the delivery location is accessible by pallet truck.

Brand: TTulpeŽ
Energy class: Product sheet
£ 445,- incl. VAT



  • Size chart Smart Master 60-80-100
  • Doorsnede Smart Master 60-80-100
  • ErP Smart Master 100
  • ErP data sheet Smart Master 60-80-100
  • Sfeer Smart Master 60-100

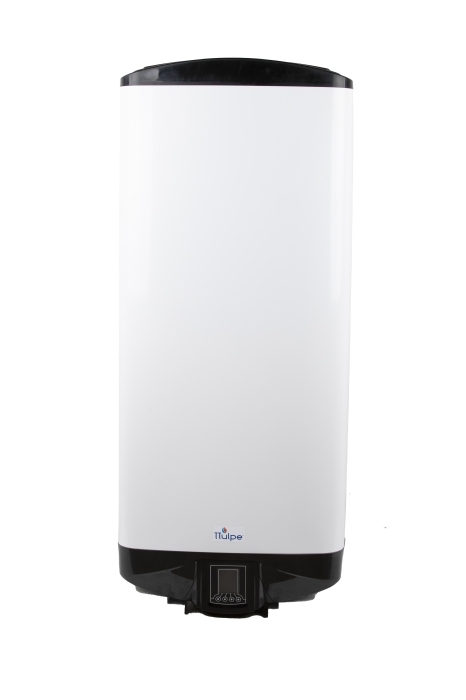

  • Smart Master 100 front
  • Smart Master 60-100 bottom

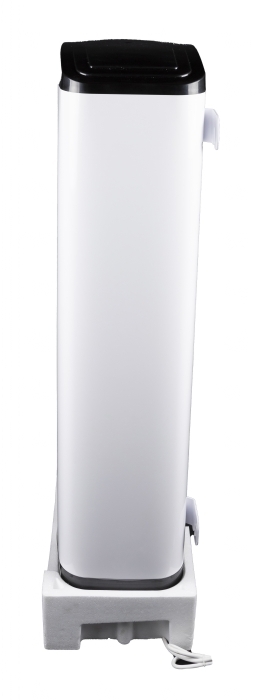

  • Smart master 100 side
  • Smart Master 100 sfeer
  • Smart Master 100 side 2

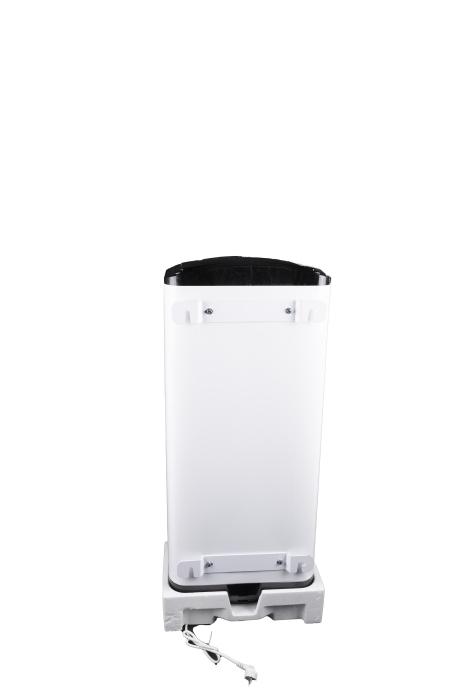

  • Smart master 100 back
